SPT1842AA
SPT1842AA
The Spectron SPT1842AA is a Band3 duplexer designed for small-cell and femtocell systems applications.
Frequency Band:
Band 3
Size:
2.5mm*2.0mm
Function:
Duplexer
Center Frequency:
Tx:1842.5MHz/Rx:1747.5MHz
Bandwidth:
75MHz
Packaging:
CSP
Add To Quote
Configurable Options
ParameterOption Code
Quantity / Special Request

Please specify the quantity you require below.

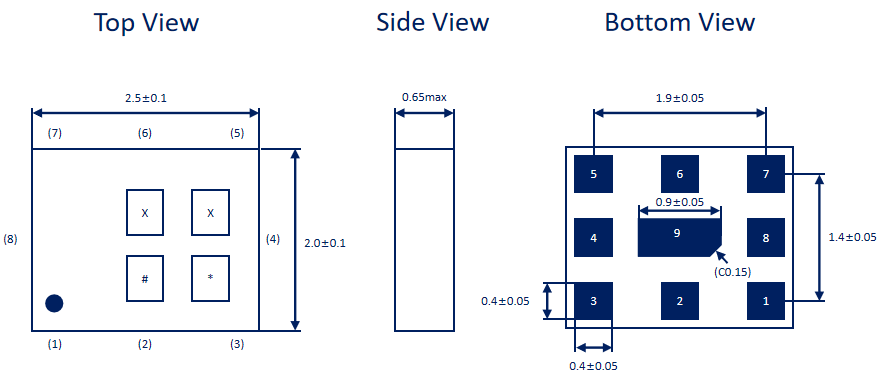

PACKAGE DRAWING

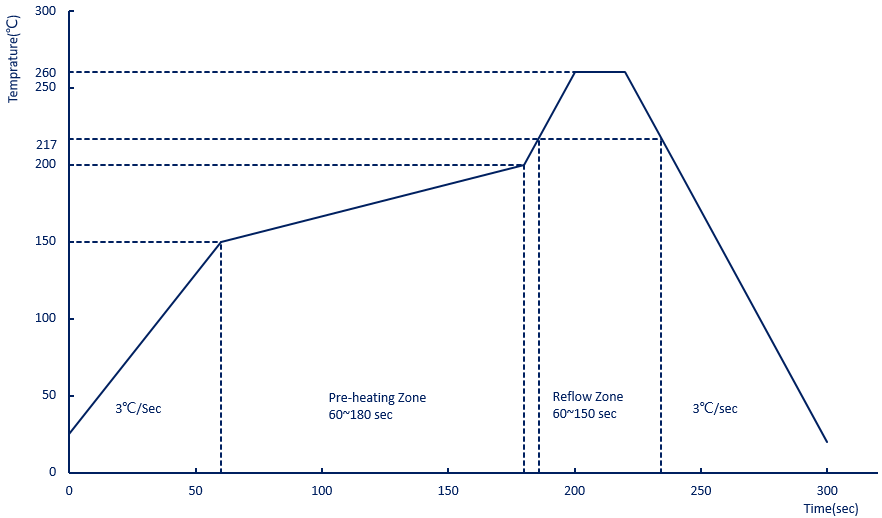

SOLDERING PROFILE

SOLDERING PROFILE.png

ORDERING INFORMATION
TAPE & REEL SPECIFICATION
HANDLING & STORAGE
COMPLIANCE
DOCUMENTS
